Product advantages:

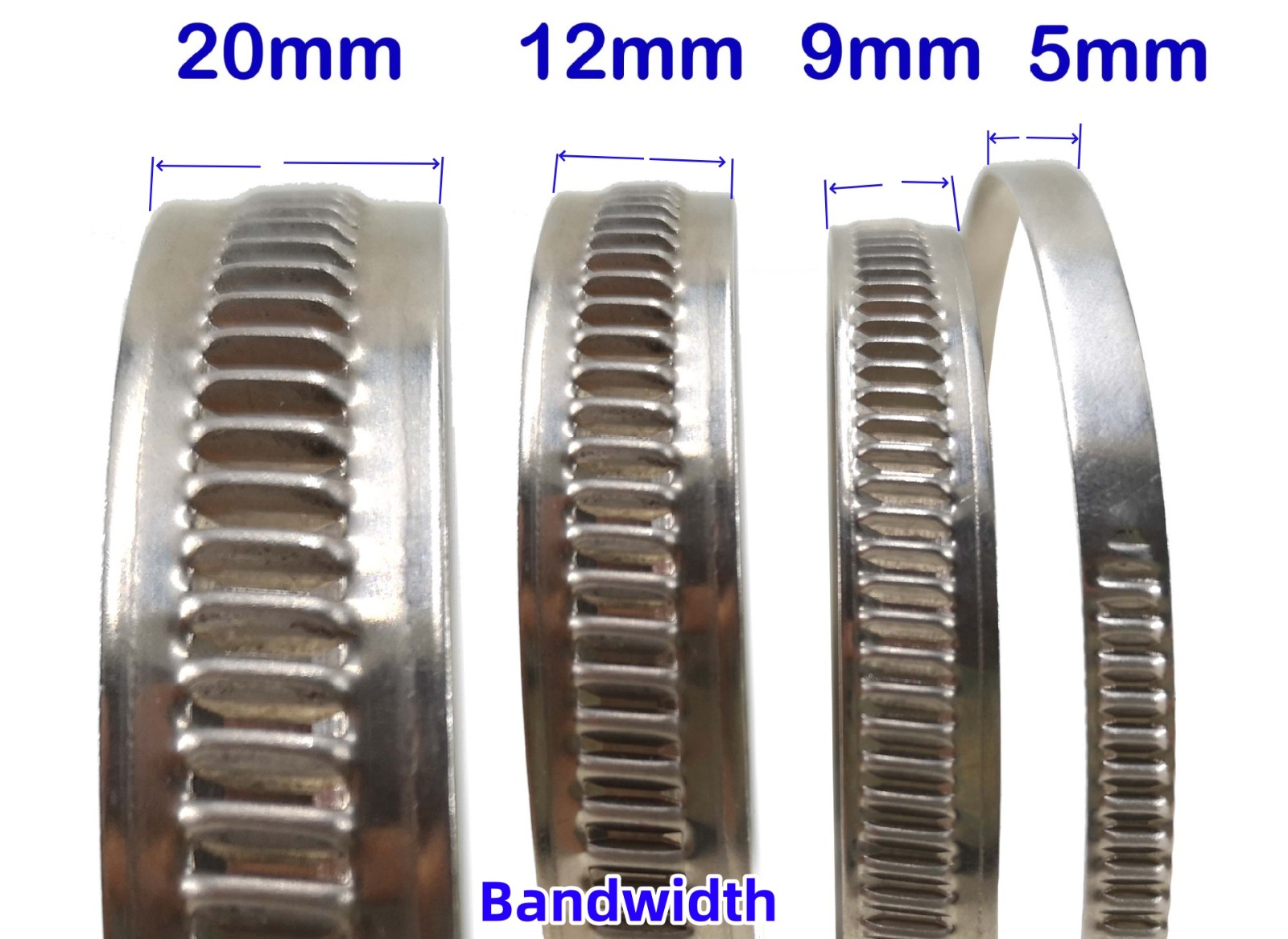

●Wide Diameter range

●Material: W2, W3 and W5 respectively

●Band boasts with higher tensile force and more torque.

●Due to its optimized design, This clamp is able to spread the tightening power evenly over band, which ensures a better tightening effect.

●No chromium VI used for coating, which are in compliance with the environmental requirements from ROHS, WEEE and ELV.

●Diameter range: From 8-12 mm to 140-160 mm.

Screw Types

　 W1 W2 W3 W4 W5 　

Phillips head 　 ● 　 　 　

Slotted head 　 　 ● 　 ●

Anti-corrosion Test

Material Anti-corrosion time at salt spray test   　

W1 More than 36 hours

W2 More than 72 hours

W3 More than 200 hours

W4 More than 240 hours

W5 More than 400 hours

Maximum allowable corrosion rate is 10% as for the base metal.
