There are three kinds of connection methods for the hoop head, namely, hooking type, riveting type and welding type

The British clamp is the first choice in the European market.Non-prefabricated and

rolled strips protect the hose surface from shear during installation.The clamp is made of

iron and stainless steel with bandwidth and thickness of9.7mm,11.7mm and 0.8mm and

0.9mm,respectively, with high torsional and compressive strength.

British hose clamp can work torque 3.5-10 Nm,compressive strength 1.3Mpa,widely

used in automotive industry,shipbuilding industry,machinery industry of various

equipment oil,water,gas pipe,is the ideal attachment connection and tightening of

various hoses.

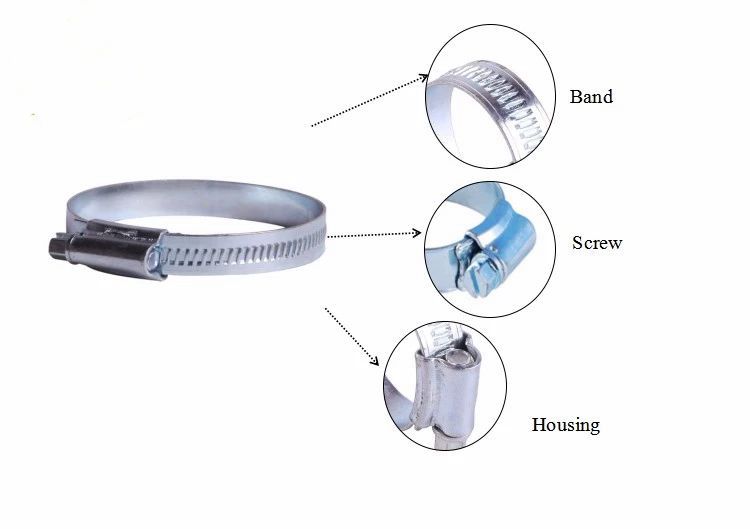

The British hose clip with a newly designed shell can more evenly distribute the high

clamping force and provide safer guidance for the emerging belt. The short housing

saddle also provides an optimal contact pressure forthe hose.The new generation design

produces reserves of clamping forces that prevent fracture to enable secure seal

connections.Also,the smooth underside and rolled up band edges are gentle to the hose

and also reduce the risk of leakage.

material:

W 1--All belts,housing and screws are galvanized steel;

W2belt and housing 200 sS or 30o ss stainless steel,screw galvanized steel;

W 4-Albelts,housing and screws are 2o0ss or30o ss stainless steel;

W 5-all strap,housing and screws are 316 SS stainless steel.

Application: The design of steel band curling and non-perforation helps to prevent the hose surface from being scratched during installation, thereby protecting the gas or liquid in the pipe from leakage. This product is widely used in automobile, industry, mining, shipbuilding and other industries. English style hose clamps are preferred by the European markets. The non-preforated and rolled band protects the soft-hoses surface from shearing during installation.

according to the bandwidth (9.7mm and 11.7mm), and the material is W1.

The specific reference is as follows: W1--all of the band, housing and screw is galvanized steel; all of the band, housing and screw is galvanized steel;
